Basement Waterproofing at Family Home

Waterproof a leaking basement to create a family recreation room on the North Shore

North Shore, Auckland

SUMMARY

Located in the North Shore suburb of Birkenhead, the 1970's construction of block walls on slab was ground-bearing to full height on 3 sides. Newton Specialist Contractor Waterproofing Solutions were brought onto this residential project to waterproof a severely leaking and therefore unusable 60m2 basement. The existing basement required repairs to old inground spa area and the space would get ankle deep in water during heavy rain.

THE PROJECT

Excavation to access the exterior walls was impossible, so an internal solution was required.  The owners had exhausted all possible avenues and had given up on ever using the space, until they were offered Newton System 500 by Waterproofing Solutions Ltd

THE SPECIFICATION

Ensuring that the project was fully compliant with Building Code Clause E2 which requires buildings to provide adequate resistance to penetration by, and accumulation of, moisture from the outside; Waterproofing Solutions recommended a Newton System 500 - internal cavity drain membrane system.

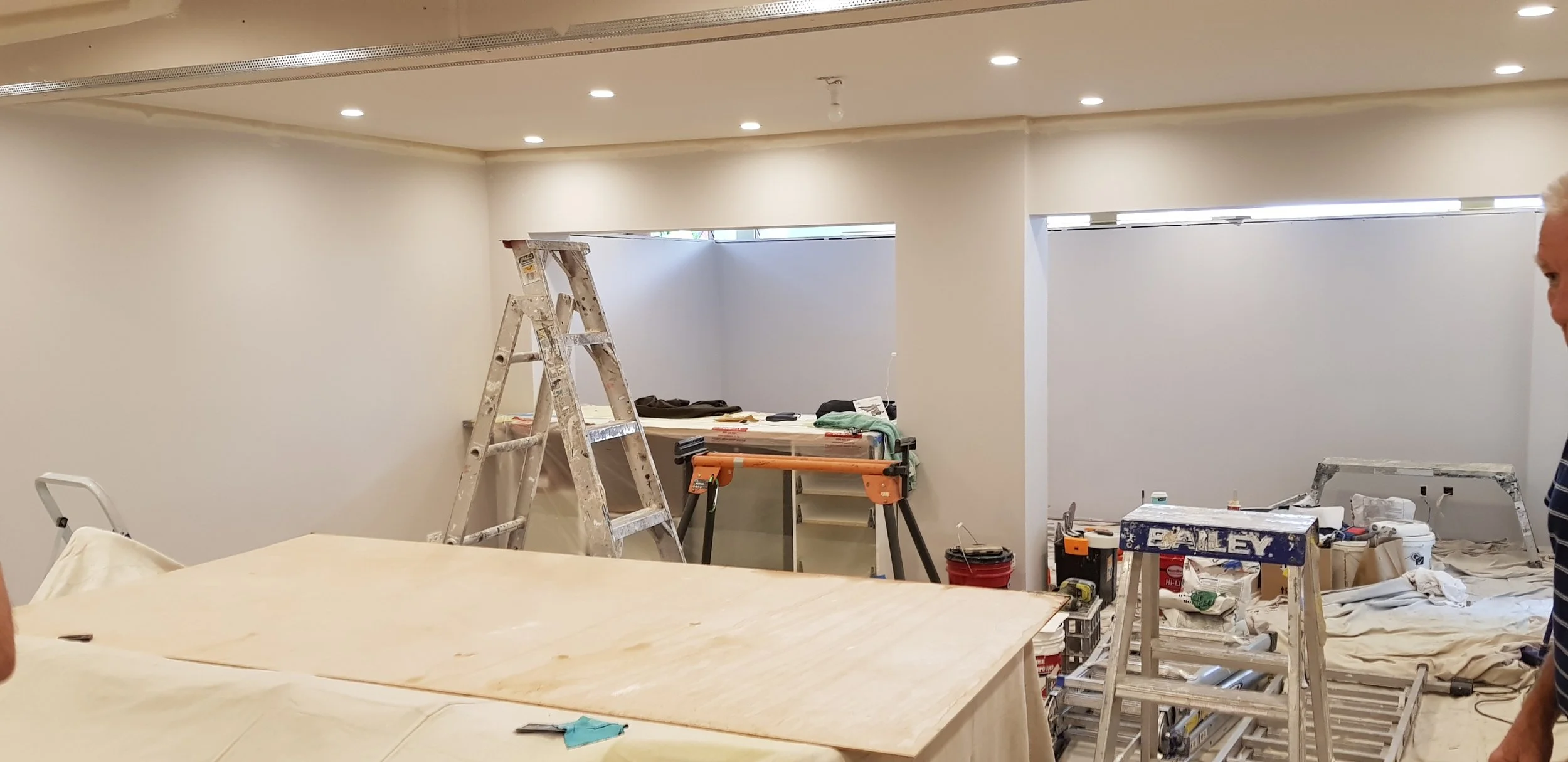

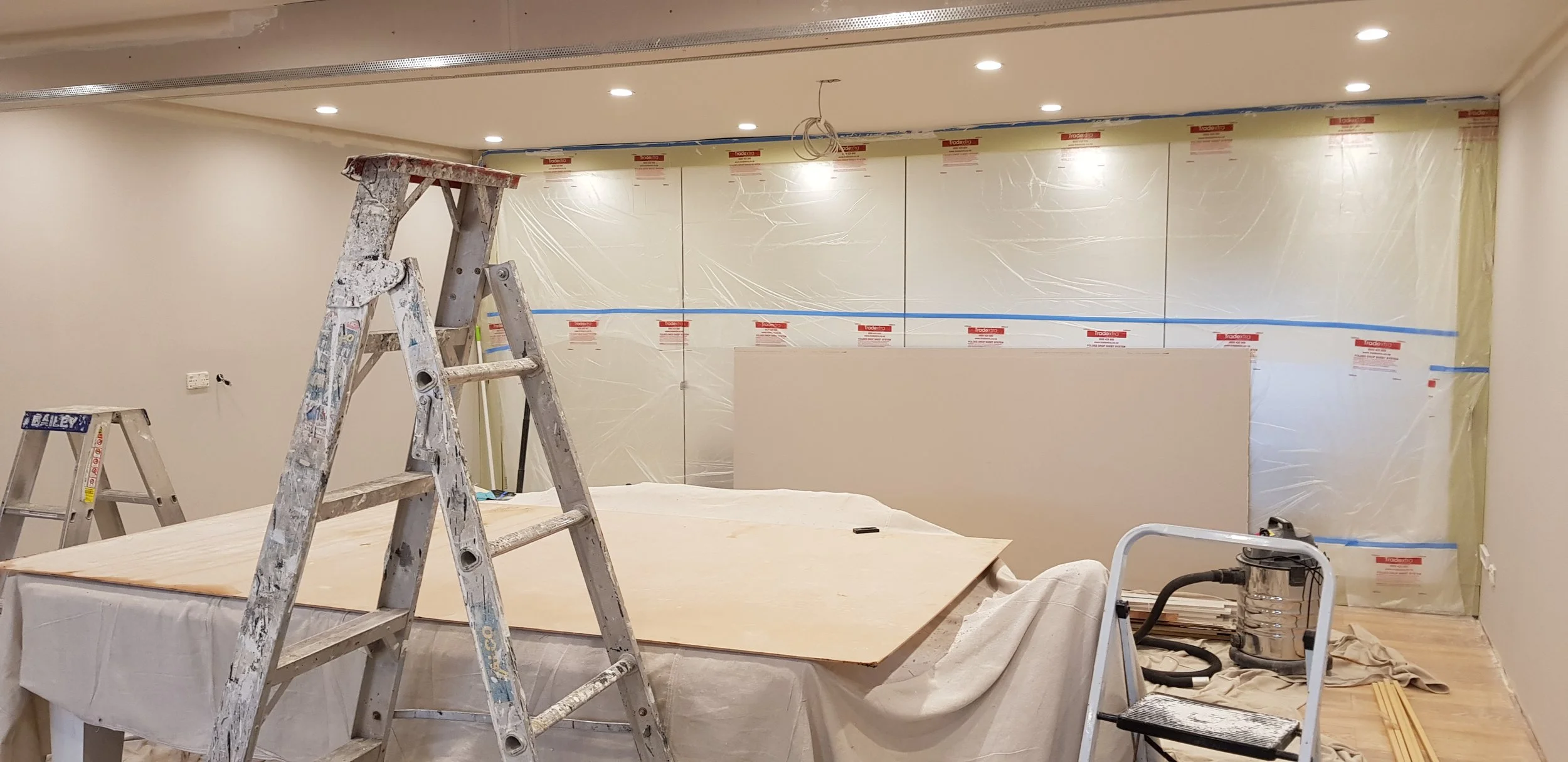

To start, faults and deficiencies in the wall and slab were repaired, then the wall were secured with Newton 508 membrane.  Newton Basedrain was then fitted to the perimeter, with gravity drainage to the exterior stormwater system.  The floor was infilled with XPS board and a Newton 508 membrane laid across the floor, thus fully sealed of the area. Taking advantage of Newton System 500’s major advantage over hydrostatic coating option , the  builder then laid a laminate floor system and battened and lined the walls – importantly only the Newton System 500 with it’s unique ‘Multiplug’ fixing system allows this level of freedom and choice when relining

THE RESULT

As an extremely experienced waterproofing contractor, Waterproofing Solutions were able to confidently recommend, design and install a comprehensive and truly failsafe waterproofing system that will protect the property from unwanted water ingress for many years to come. Waterproofing Solutions also provided complete peace of mind by offering a 10 years installation warranty to support the product guarantee provided by Newton Systems NZ

Waterproofing Solutions were involved from the initial design stages through to completion and were able to ensure this badly leaking basement was protected by a simple yet effective Newton waterproofing system.

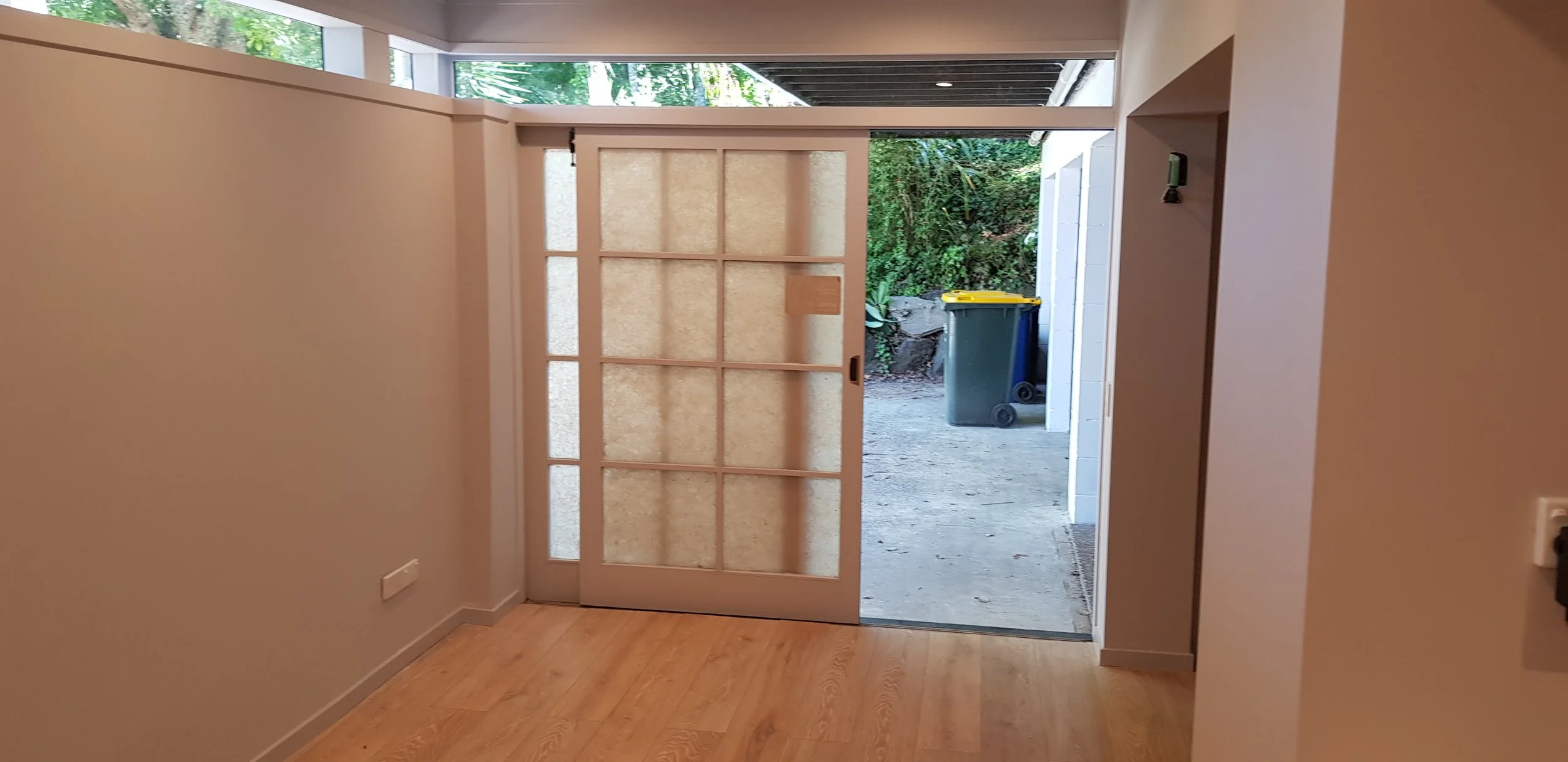

Potential problems and a difficult door threshold was considered and redesigned early on in the build, ensuring everything went to plan and a beautiful dry basement was created.
— Dave Edwards - Director - WATERPROOFING SOLUTIONS
You made me love my house again.
— Home Owner

INSTALLER: Waterproofing Solutions

EMAIL: dave@waterproofsolutions.co.nz

CALL: 021 331 971
