Newton PAC-500 System

Newton PAC-500 System

Waterproofing And Protection Against Radon (And Other Gases)

This unique solution ensures that the basement will be waterproofed and gas controlled by trained professionals, as a package. The Newton PAC system can be installed to both new and existing projects, domestic and commercial.


Key Benefits

The Newton PAC “Positive Air Curtain” 500 System is a combined basement waterproofing and ground gas mitigation system which successfully controls both water and gas levels within below ground/retaining structures.

This patented system combines the Newton System 500 Cavity Drain waterproofing system, installed by our Newton Specialist Basement Contractor Network, with a positive pressure air delivery system, installed by Prestige Air Technology.

The Newton Specialist Basement Contractor undertaking the work guarantees both the design and installation of the system and these can be further underwritten by an independent insurance scheme. Prestige Air provide integrity testing for the gas resistance of the installed membranes.

Typical Applications

Provides protection against:

  • Radon Gas
  • Methane Gas
  • Hydrocarbons and Carbon Dioxide
  • Petroleum and Diesel contaminated soils
  • Water ingress.

The system includes a durable membrane Newton 508, that doubles as a drainage membrane and void former to allow for throughput of the air pressure created by the Air Curtain. Newton 508, and its associated jointing and sealing products, have third party testing accreditation for radon permeability.

The system can be installed in clearly defined stages depending upon the levels of ground gas identified or expected . The ability to upgrade the system dependent upon post installation testing makes the PAC system highly cost effective – one that can be tailored to each individual circumstance.

Newton PAC-500 Components:

Provides protection against:

  • Newton 508 Membrane
  • Newton NuSeal Plugs
  • Newton WaterSeal Rope
  • Newton WaterSeal Tape
  • Newton Overtape
  • Newton Basedraine
  • Newton Titan-Pro
  • Prestige Air 100mm PDU
  • PAC Air Input Manifold
Speak to the Experts

For further information about structural waterproofing speak to one of our technical experts:

Call us:  09 527 1829
Email us: tech@newtonsystems.co.nz

ADD TO ENQUIRY


Typical Applications

Newton 107F is a two-component, cementitious, polymer-rich coating for the waterproofing and protection of concrete and masonry. Capable of withstanding heads of water pressure to 10 bar, both positively and negatively, Newton 107F is ideally suited to the waterproofing of:

  • Reservoirs
  • Tunnels
  • Water tanks
  • Basements
  • Podium decks
  • Flat roofs
  • Balconies
  • Terraces

It is especially capable where the structure has both masonry and concrete elements, where differential movement is expected, due to its elastic properties.

When mixed, Newton 107F is thixotropic to enable ease of application by brush or airless spray, providing an even finish with no sagging and excellent adhesion to prepared concrete and masonry substrates, even in vertical situations.

Newton 107F hydrates to form a durable, highly alkaline, permanently elastomeric coating which not only protects the concrete or other substrates from water penetration and carbon dioxide diffusion, but also accommodates movement in cracks and at movement joints. It is non-hazardous and ideally suited for application in confined spaces.

Newton 107F is reinforced over static joints and at details and changes of direction with Newton 912-RT. For horizontal movement joints use Newton 106 FlexProof-NV and for vertical movement joints, Newton 106 FlexProof-X1.

Newton 107F is ideal for waterproofing:
  • Podium decks, flat roofs, terraces and balconies
  • Water-retaining structures such as water tanks and reservoirs
  • Earth-retaining foundation walls to both the positive and negative side
  • Internal concrete surfaces of walls and rafts or slabs to earth-retained structures such as habitable basements, car parks, plant rooms and lift-pits



“Having carried out a series of Radon monitoring it was established that we had levels up to 5000bqm within our basement of our home. In addition to this our basement was also damp. After failing to get levels down to acceptable levels by using a standard type retrospective sump, Prestige Air and Protectahome jointly installed the Newton PAC system for both Radon and waterproofing. We now enjoy a dry basement with levels of Radon less than 100bqm.”

Mr Read, Derbyshire

Newton Fibran XPS 500-C

Newton Fibran XPS 500-C

Closed-Cell Slotted Insulation Board

Newton Fibran XPS 500-C is a 50mm deep, closed-cell thermal insulation board made from rigid extruded polystyrene foam (XPS)


Key Benefits

Newton Fibran XPS 500-C is a 50mm deep, closed-cell thermal insulation board made from rigid extruded polystyrene foam (XPS). The product is manufactured in accordance with EN 13164 – “Thermal insulation products for buildings – Factory made products of extruded polystyrene (XPS)-specification.”

Produced exclusively for Newton Waterproofing Ltd, Newton Fibran XPS 500-C insulation boards are used to form a 50mm spacer adjacent to the Basedrain and Floordrain drainage channels within the Newton System 500 cavity drain waterproofing system. The insulation boards are rated at 500 kPa and feature specifically designed slots to the underside of the boards, that in combination with the perimeter and spine drainage channels of Newton System 500 form a fully drained supporting spacer below the floor drainage membrane.

The insulation boards can also be used as a protection for Newton System 200 liquid applied waterproofing membranes applied externally to new earth retained structures or retained walls, uniquely offering protection, insulation and drainage within one product.

  • Excellent thermal insulation characteristics with a very low coefficient of thermal conductivity
  • Closed cell structure with no connecting capillaries resulting in extremely high resistance to water
  • absorption and diffusion of water vapour
  • Capable of permanent submersion in water
  • Fully inert when subjected to climatic variations
  • High mechanical and compressive strength and high dimensional stability
  • Life expectancy is equivalent to the building in which it is installed (estimated 50 years)
  • 100% recyclable
  • Easy to transport, cut and apply
  • Completely rot proof and does not develop any mould or other efflorescence
  • No nutritional value for rodents, insects, etc
  • Good resistance to acids, alkalines, aggressive ground containments and inorganic gases

Typical Applications

  • As the spacer below Newton System 500 flooring membranes
  • Protection of Newton System 200 liquid applied waterproofing membranes applied externally to retained walls
  • Insulated support below Newton 403 HyrdroBond waterproofing membrane
  • Parking decks and green roofs
  • Full external envelope insulating of subterranean structures sited permanently within the water table

Suitable Substrate

  • Compacted, clean, and level surfaces
  • Basement concrete floor slabs and rafts
  • Earth retained walls of concrete, mortar or ICF
  • Compacted blinding
Speak to the Experts

For further information about structural waterproofing speak to one of our technical experts:

Call us:  09 527 1829
Email us: tech@newtonsystems.co.nz

ADD TO ENQUIRY


Product Overview

Code:  500C

Size: 50mm x 1000mm x 600mm

Colour:  Green

Area: 3.2kg/m²


Newton System 500 Ancillaries

Newton System 500 Ancillaries

Ancillary Products For Use With Newton System 500

Newton System 500 Ancillaries are a selection of specialist ancillary products that are critically important for the correct installation of Newton System 500 cavity drain membranes. The ancillaries comprise of a range of products that deal with fixing Newton System 500 to different substrates and surfaces, sealing the membranes, and dealing with protrusions and condensation.


Product Overview

Speak to the Experts

For further information about structural waterproofing speak to one of our technical experts:

Call us:  09 527 1829
Email us: tech@newtonsystems.co.nz

ADD TO ENQUIRY


Membrane: 503

Fixing Plug: Multiplug

Jointing Tape: Newton Overtape

Repairs: Newton Overtape

Membrane: 508 Mesh

Fixing Plug: Multiplug

Jointing Tape: Newton Mesh Tape

Repairs: Newton Mesh Tape

Membrane: 503 Mesh

Fixing Plug: Multiplug

Jointing Tape: Newton Mesh Tape

Repairs: Newton Mesh Tape

Membrane: 520

Fixing Plug: N/A

Jointing Tape: Newton Waterseal Tape

Repairs: Newton Overtape

Membrane: 508

Fixing Plug: Multiplug

Jointing Tape: Newton Waterseal Tape

Repairs: Newton Overtape

Back-Box Liners
Pre-formed to receive electrical pattress boxes, joists, beams and pipes.

Sealed to the membrane with Newton Waterseal Tape, Overtape or Mesh Tape

Key Benefits

The ancillaries comprise of a range of products that deal with fixing Newton System 500 to different substrates and surfaces, sealing the membranes, and dealing with protrusions and condensation.

Typical Applications

Newton MultiPlug (A1) –For securing Newton System 500 membranes to the wall and for providing a fixing point for 5mm screws and the Newton Helifix Wall Tie

Newton NuSeal Plugs (A2, A3) – For fixing the membrane to vaulted ceilings and sloping soffits

Newton Helifix Wall Ties (WT 155 to 300) – For fixing into the head of the Newton MultiPlug for the tying in of block or brick internal walls that are built in front of the Newton System 500

Newton Insulation Fixing Plugs (IF90) – For fixing Newton Fibran XPS 500-C insulative spacer to the slab/raft where lightweight floor finishes are to be used

Newton Waterseal Tape (A5, A5W) – – Double-sided butyl sealing tape used to seal adjacent sheets of Newton membranes

Newton Overtape (A7, A8, A9) – Single-sided butyl tape used to seal the Newton PAC Radon System and around protrusions at 3D detailing

Newton Waterseal Rope (A6, A6w) Butyl bead for sealing the base of the Newton NuSeal Plug for fixing to vaults and soffits

Newton Condensation Strip (M14) – For collecting condensation into the Basedrain and not on internal finishes

Newton PipeCollar (A35) – Self-adhesive, preformed pipe seal for sealing a flat membrane to a protruding pipe

Newton Back-Box Liner Single box (BX1) – Waterproof lining for electrical pattress boxes

Newton Back-Box Liner Double box (BX2) –Waterproof lining for electrical pattress boxes

Newton Pipe Sleeve (BX3) – –Preformed waterproof sleeve for 110mm pipe

Newton Joist Liner (BX4) – Waterproof lining for steels and joist ends, size: made to order

Newton Baseboard

Newton BaseboardF

Drainage Conduit

Newton Baseboard is a unique above-slab drainage conduit, designed to capture water that is entering the structure via the wall/floor junction for removal to an appropriate drainage medium.


Products Overview

Speak to the Experts

For further information about structural waterproofing speak to one of our technical experts:

Call us:  09 527 1829
Email us: tech@newtonsystems.co.nz

ADD TO ENQUIRY


D9

Baseboard Outside Corner

Colour: White

D12F, D11R & D11L
Baseboard Length 2.4m
Colour: White

D10

Baseboard Inside Corner
Colour: White

D12H
Baseboard Hanger
Colour: White

D11R & D11L
Baseboard End Caps (Right/Left)
Colour: White

D13
Baseboard Connector
Colour: White

Key Benefits

Newton Baseboard is a patented US product only available in the United Kingdom from Newton Waterproofing Systems.

Typical Applications

Prior to installing the Newton Baseboard System, mechanically fix a Newton Drainage Membrane to the retaining wall. Apply Newton MultiPlugs at 1m centres and affix the Baseboard Hanger in the head of the plug. The Baseboard is then clipped tight over the hanger to hold the linear lengths of the conduit into position. Use the Baseboard jointing pieces to form a continuous length of the conduit. Apply an epoxy band of 150mm to the wall floor junction fillet as a key for the Newton One Shot Adhesive.

The waterproof bond between the One Shot and the epoxy allows for ingression of water to travel within the Baseboard to a predetermined drainage outlet for removal. Newton Baseboard preformed internal and external corners and stop-ends are also required.

Newton 520 eco

20 mm Recycled Cavity Drain Membrane

Newton 520 eco is a cavity drain waterproofing membrane made from recycled High Density Polypropylene (HDPE).


Newton 520 eco is one of the main constituent parts of Newton System 500, our BBA Certified, ‘Type C’ cavity drain system, used for waterproofing of earth-retained structures, that includes drainage channels sited below the membrane for increased drainage capacity. With its 20 mm deep stud profile, Newton 520 eco is used within Newton System 500 as a high drainage capacity floor membrane and is generally specified where it is anticipated that there may be a risk of severe water penetration.

Key Benefits

  • With its 20mm stud profile, Newton 520 is generally specified where it is anticipated that there may be a risk of severe water penetration

Typical Applications

  • Floor membrane as part of Newton System 500

BS 8102:2009 The British Standard for Waterproofing

BS8102 is the main design guide for structural waterproofing in the UK. Newton System 500 is a maintainable system, so complies with BS8102 requirements. BS8102 also specifies that:

“a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”
Therefore it is our recommendation that Newton System 500 is installed by a Newton Specialist Basement Contractor (NSBC). For a list of installers in your area please ring 09 527 1829 or e-mail info@newtonwaterproofing.co.uk

Speak to the Experts

For further information about structural waterproofing speak to one of our technical experts:

Call us:  09 527 1829
Email us: tech@newtonsystems.co.nz

ADD TO ENQUIRY


Product Overview

Code:M13

Packaging: Roll 2.07m x 10.0m

Colour:  Black

Weight: 18.35kg
Area: 20m²

Code:M4

Packaging: Roll 2.07m x 20.0m

Colour:  Black

Weight: 37.62
Area: 40m²


Newton 508 Mesh

8mm Meshed Cavity Drain Membrane For Basement Walls, Floors And Vaulted Soffits

Newton 508 Mesh is a high quality meshed cavity drain waterproofing membrane, suitable for use internally below the ground to retaining walls and vaulted soffits.


Key Benefits

  • BBA Certified as a waterproofing membrane as part of Newton System 500
  • Does not require extensive and damaging preparation to the wall surface
  • Polyethylene netting is ‘welded’ to the surface of the membrane during the manufacturing process producing an incredibly well bonded surface mesh
  • Superb ‘key’ for renders, plasters or for Dot & Dab Plasterboard
  • Waterproofing that is guaranteed to work when used as part of our System 500 installed by a Newton Specialist Basement Contractor

Typical Applications

  • As a damp-proof base for renders, plasters or dot & dab plasterboard within Newton System 500 waterproofing system.
  • Areas where space is limited such as stairways.
  • A waterproof base for renders, plasters or dot & dab plasterboard
  • As a render base to external areas of the waterproofing scheme such as light-well walls.
  • Vaulted soffits or curved walls where a dry-lining frame may not be appropriate
  • Newton 508 Mesh (M3) is supplied in rolls 2m x 20m giving a total of 40m2

BS8102: the British Standard for Waterproofing

BS8102 is the main design guide for structural waterproofing in the UK. Newton System 500 is a maintainable system, so complies with BS8102 requirements. BS8102 also specifies that:

“a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”
Therefore it is our recommendation that Newton System 500 is installed by a Newton Specialist Basement Contractor (NSBC). For a list of installers in your area please ring 09 527 1829 or e-mail info@newtonwaterproofing.co.uk

Speak to the Experts

For further information about structural waterproofing speak to one of our technical experts:

Call us:  09 527 1829
Email us: tech@newtonsystems.co.nz

ADD TO ENQUIRY


Product Overview

Code:M3

Size: Roll 2.0m x 2.0m

Colour: White / Translucent

Application Rate:  40m²

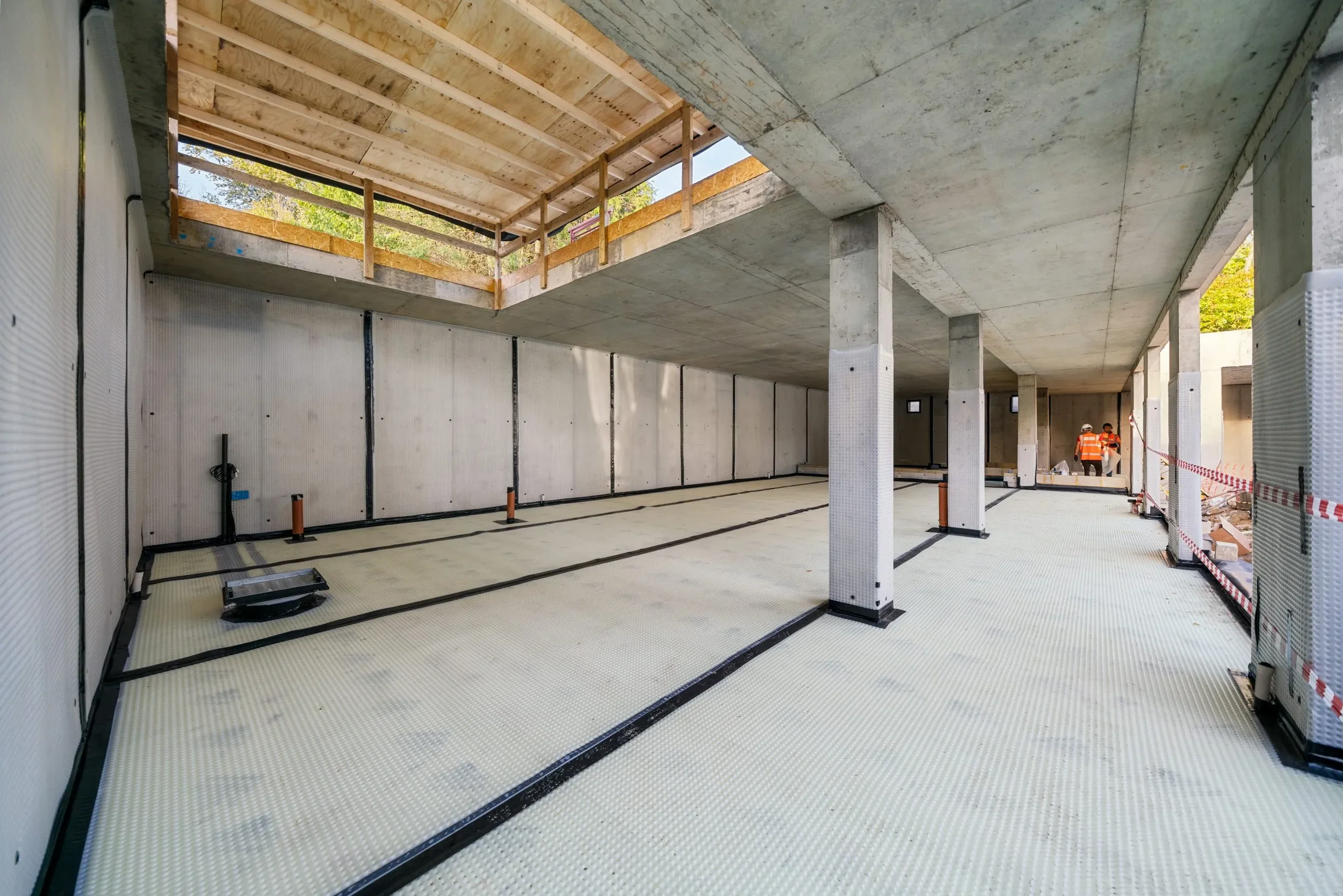

Newton 508

8mm Cavity Drain Membrane For Basements

Newton 508 is a high quality cavity drain waterproofing membrane suitable for use internally below the ground to retaining walls and vaulted soffits.


Newton 508 is the most commonly used membrane within our Newton System 500 waterproofing system that includes Newton drainage and pumping systems. Newton 508 is guaranteed against deterioration for 30 years, with a life expectancy of at least 50 years (DIN 9001:2000) and is supported by BBA Certification Number 94/3010.

Key Benefits

  • Does not require extensive and damaging preparation to the wall surface.
  • Speed of installation.
  • Provides vapour control and when used with humidity control systems is capable of delivering an environment to all levels within a Grade 3 environment to BS8102:2009
  • Independently certified as a barrier to hydro-carbon gasses, radon and methane

Newton 508 is available in roll sizes:

2.4m x 20m – 48m2 (M1R) and 2m x 20m – 40m2 (M2R)
2.4m x 20m – 48m2 (M1)

Typical Applications

As a waterproofing membrane as part of Newton System 500 and be used as both the wall and the floor membrane for the waterproofing and gas control of:

  • Basements
  • Cellars
  • Vaults
  • Tunnels
  • Arches

BS8102: the British Standard for Waterproofing

BS8102 is the main design guide for structural waterproofing in the UK. Newton System 500 is a maintainable system, so complies with BS8102 requirements. BS8102 also specifies that:

“a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”
Therefore it is our recommendation that Newton System 500 is installed by a Newton Specialist Basement Contractor (NSBC). For a list of installers in your area please ring 09 527 1829 or e-mail info@newtonwaterproofing.co.uk

Speak to the Experts

For further information about structural waterproofing speak to one of our technical experts:

Call us:  09 527 1829
Email us: tech@newtonsystems.co.nz

ADD TO ENQUIRY


Product Overview

Code: M1

Size: Roll 2.4m x 20m

Colour:White / Translucent

Weight: 500g/m²
Area: 48/m²

Code: M1R & M2R

Size:  Roll 2.4 / 2.07m x 20m

Colour: White / Translucent

Weight: 700g/m²
Area: 48/40/m²


BIM Object

View product on NBS National BIM Library

Newton 503 Mesh

Newton 503 Mesh

3mm Meshed Cavity Drain Membrane For Basements

Newton 503 Mesh is a high quality cavity drain waterproofing membrane suitable for use internally below the ground to retaining walls and vaulted soffits.


With its 3mm stud, Newton 503 Mesh is just 3.5mm in overall thickness, and is the preferred meshed membrane where space is of a premium. Its meshed surface provides an excellent ‘key’ for lime mortars, renders, plasters or dabbed plasterboard. Please see the Newton 503 Mesh Installation Instructions for details on fixing and finishing of the product. Newton 503 Mesh holds BBA certification (94/3010).

Key Benefits

  • Newton 503 Mesh is guaranteed against deterioration for 30 years, and has a life expectancy of at least 50 years (DIN 9001:2000).
  • It is inert with high compressive loading stability.
  • It is highly resistant to water, alkalies, saline solutions and organic acids, and it is not effected by minerals. It is also resistant to bacteria, fungi and other small organisms.
  • BBA Certified Number 94/3010
  • Newton 503 Mesh is supplied in a roll size of 2mx 20m, achieving 40m2 (M11)

Typical Applications

With its 3mm stud, Newton 503 Mesh is just 3.5mm in overall thickness, and is the preferred meshed membrane where space is of a premium.

The high quality meshed surface provides an excellent ’key’ for lime mortars, renders, plasters or dabbed plasterboard.

BS8102: the British Standard for Waterproofing

BS8102 is the main design guide for structural waterproofing in the UK. Newton System 500 is a maintainable system, so complies with BS8102 requirements. BS8102 also specifies that:

“a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”
Therefore it is our recommendation that Newton System 500 is installed by a Newton Specialist Basement Contractor (NSBC). For a list of installers in your area please ring 09 527 1829 or e-mail info@newtonwaterproofing.co.uk

Speak to the Experts

For further information about structural waterproofing speak to one of our technical experts:

Call us:  09 527 1829
Email us: tech@newtonsystems.co.nz

ADD TO ENQUIRY


Product Overview

Code: M11

Packaging: Roll 2.0m x 2.0m

Colour:White / Translucent

Application Rate:  40m²


Related Case Studies

Below Ground Waterproofing Solution for a New-Build, Surrey

Waterproofing Damp Vaults – Pineapple Dance Studios

Waterproofing the Hotel Football Manchester – Phase 2

Waterproofing Riverside Properties



“I use Newton Waterproofing Systems because of the friendly and efficient service that we get – nothing is ever too much trouble. The products are excellent and I like being part of the research and development of their products to the ongoing benefit of the waterproofing industry. In addition I like the fact that my company is associated with the market leaders in structural waterproofing.”

Ian MacLennan, MacLennan UK (Newton Specialist Basement Contractor

Newton 503

Newton 503

3mm Cavity Drain Membrane For Basements

Newton 503 is a high quality cavity drain waterproofing and damp proofing membrane suitable for use internally above or below the ground to retaining walls, vaulted soffits and floors. Newton 503 can be used within our Newton System 500 waterproofing system that includes Newton drainage and pumping systems. Please see the Newton Installation Manual for details on fixing and finishing of the product. Newton 503 holds BBA certification (94/3010).


Key Benefits

  • Does not require extensive and damaging preparation to the wall surface.
  • Speed of installation.
  • Provides vapour control and when used with humidity control systems is capable of delivering an environment to all levels within a Grade 3 environment to BS8102:2009
  • 3mm stud profile can save valuable space to floors, stair cases and vaulted soffits.
  • Newton 503 is guaranteed against deterioration for 30 years, and has a life expectancy of at least 50 years (DIN 9001:2000) and is supported by BBA Certification Number 94/3010.
  • Newton 503 (M5) is supplied in rolls 2m x 20m – 40m2

Typical Applications

As a waterproofing membrane as part of Newton System 500 and be used as both the wall and the floor membrane for the waterproofing of:

  • Basements
  • Cellars
  • Vaults
  • Tunnels
  • Arches

BS8102: the British Standard for Waterproofing

BS8102 is the main design guide for structural waterproofing in the UK. Newton System 500 is a maintainable system, so complies with BS8102 requirements. BS8102 also specifies that:

“a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”
Therefore it is our recommendation that Newton System 500 is installed by a Newton Specialist Basement Contractor (NSBC). For a list of installers in your area please ring 09 527 1829 or e-mail info@newtonwaterproofing.co.uk

Speak to the Experts

For further information about structural waterproofing speak to one of our technical experts:

Call us:  09 527 1829
Email us: tech@newtonsystems.co.nz

ADD TO ENQUIRY


Product Overview

Code: M5

Packaging: Roll 20.0m x 2.0m

Colour:White / Translucent

Area:40/m²


Related Case Studies

Below Ground Waterproofing Solution for a New-Build, Surrey

Waterproofing Damp Vaults – Pineapple Dance Studios

Waterproofing the Hotel Football Manchester – Phase 2

Waterproofing Riverside Properties



“I use Newton Waterproofing Systems because of the friendly and efficient service that we get – nothing is ever too much trouble. The products are excellent and I like being part of the research and development of their products to the ongoing benefit of the waterproofing industry. In addition I like the fact that my company is associated with the market leaders in structural waterproofing.”

Ian MacLennan, MacLennan UK (Newton Specialist Basement Contractor
